YN52S00004P1 YN52S00027P1 LS52S00015P Kobelco Pressure Senso

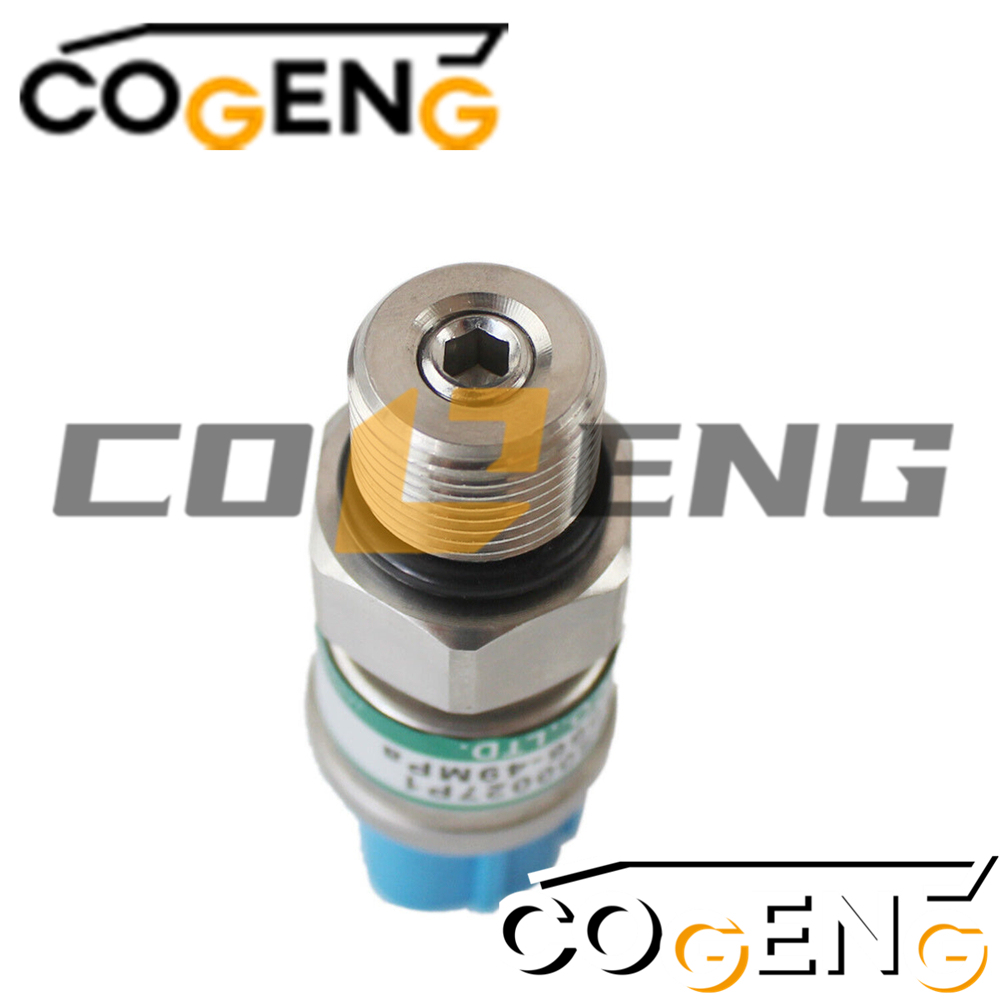

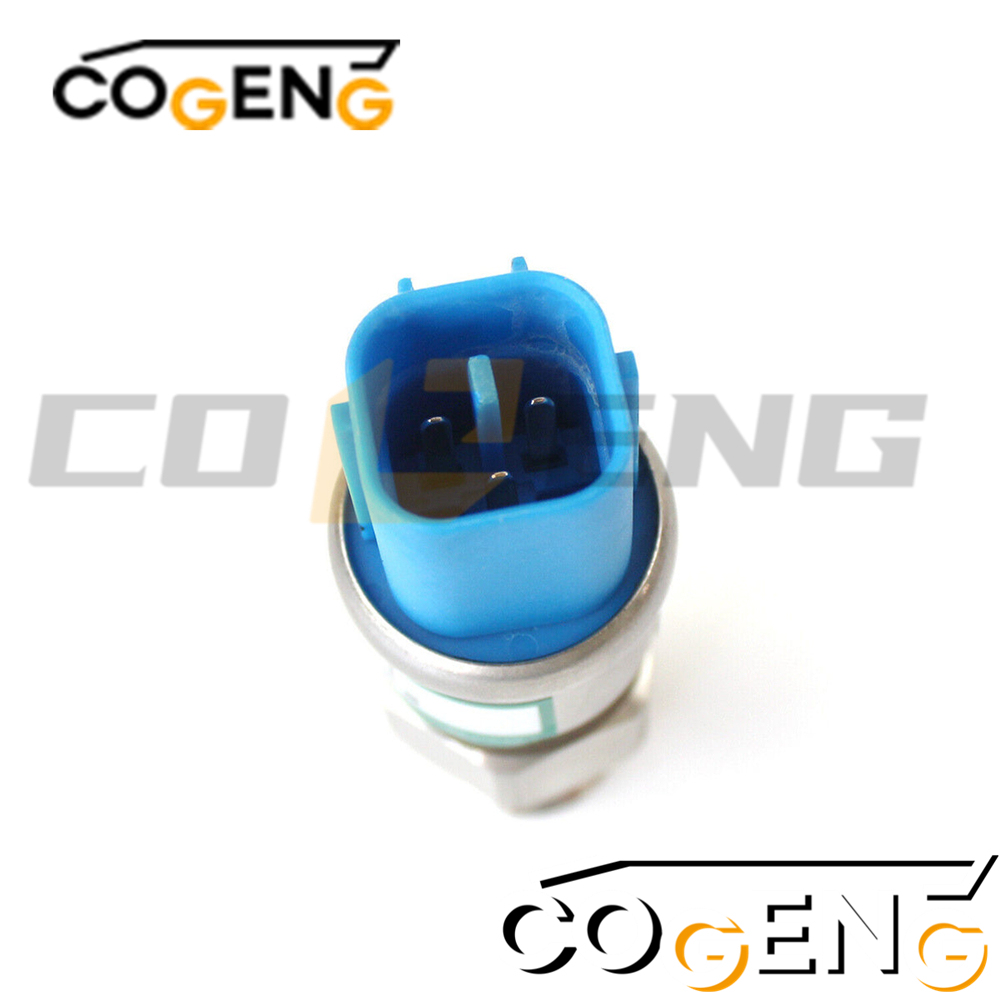

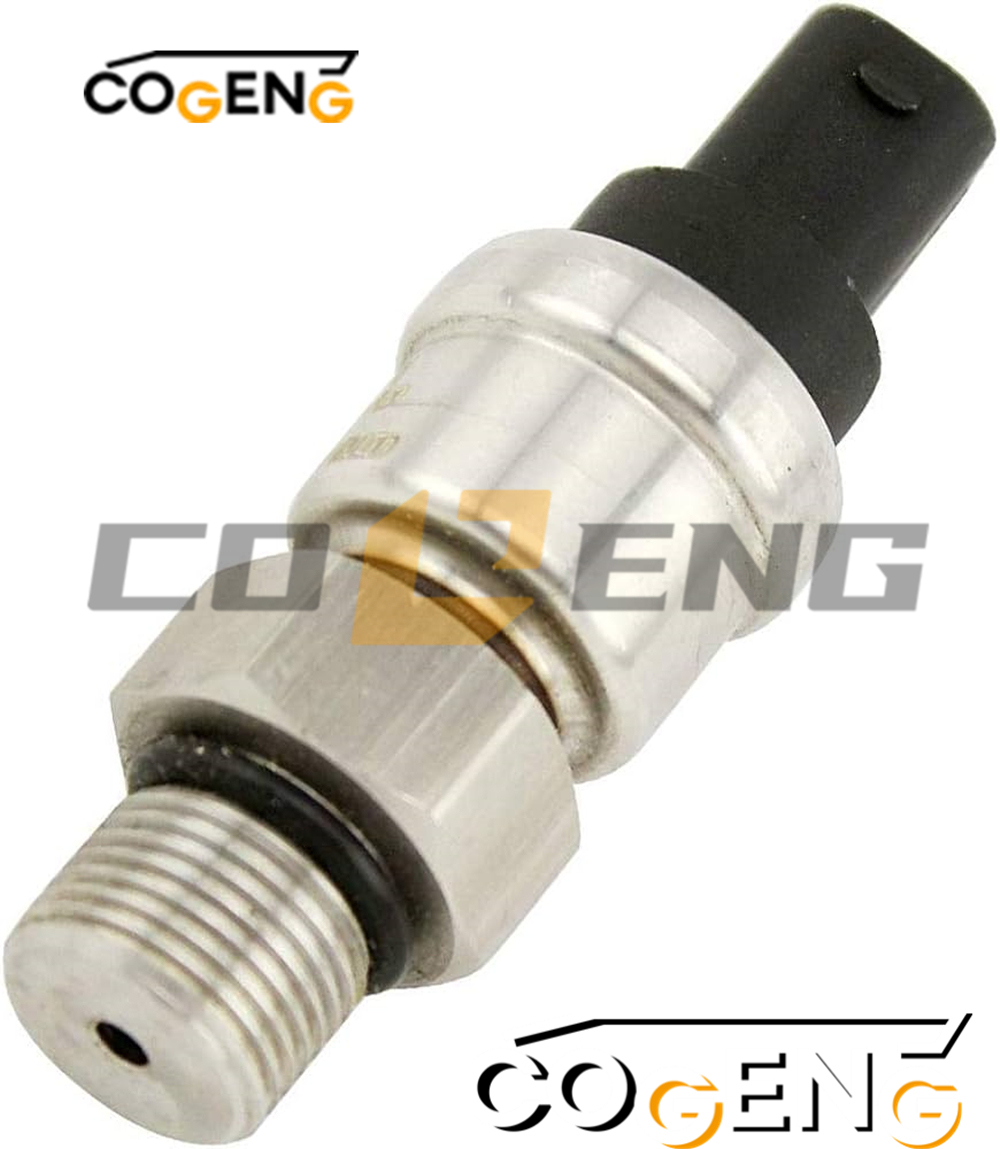

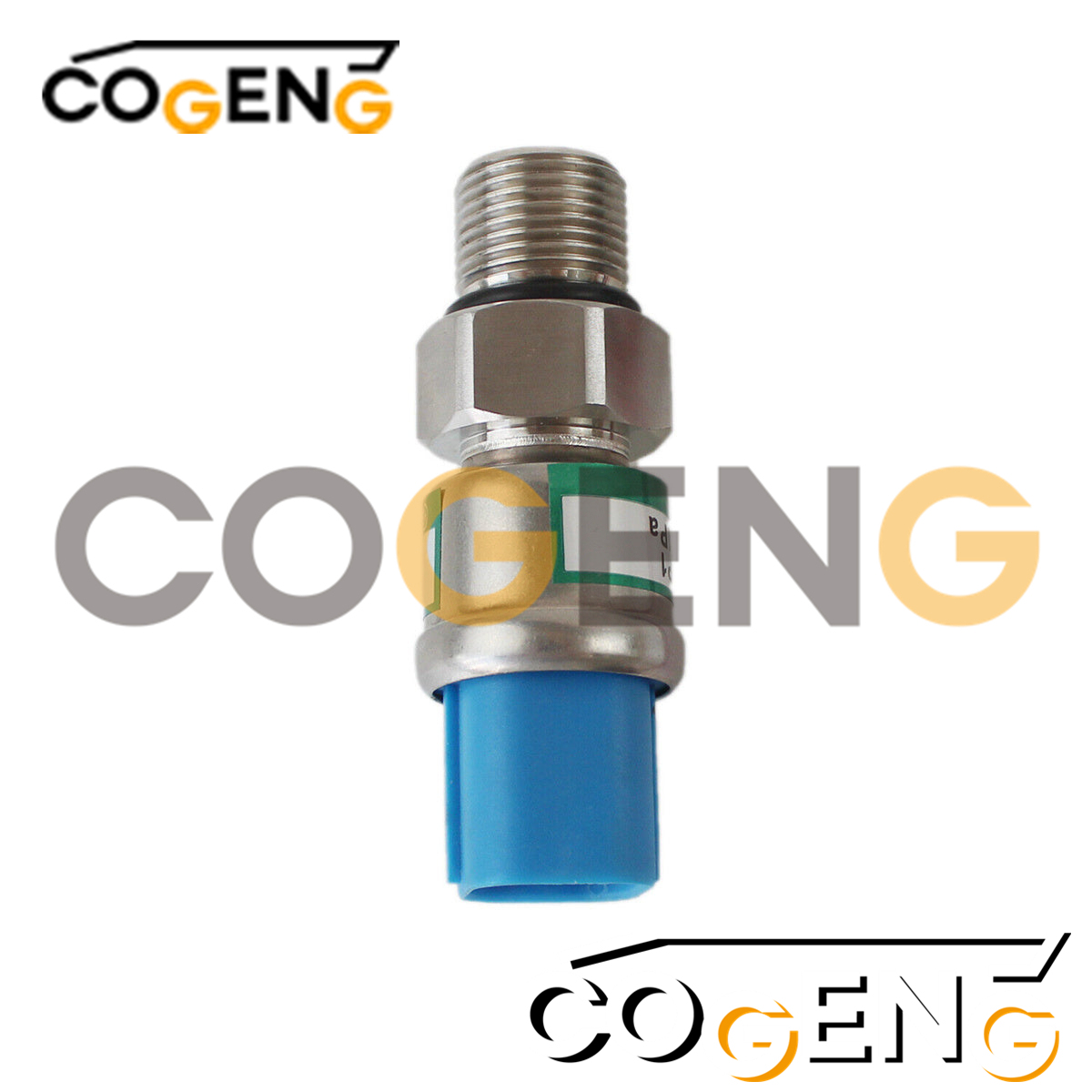

Product name: Kobelco Pressure Sensor
Part No: YN52S00004P1 YN52S00027P1 LS52S00015P
Model Number:For SK100L SK200-2 SK230-8 SK120-5 SK200-5 SK200-6 SK200LC-5
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Decompose pictures
Here are some additional details about
MODEL APPLIED：for Kobelco SK120-5 SK120LC-5 SK200-5 SK200LC-5 SK200
Accurate：SINOCMP excavator parts installation and use. Please find the suitable SINOCMP product based on the old part number and machine model.
Parts list
| NO |
Number |
Name |
Qty |
| 1-1 |
ZD12P02400 |
O-RING ID 23.70±0.24x0D 30mm |
1 |
| 2 |
YN30H01010P |
ELBOW |
1 |
| 3 |
YN30H01005P1 |
RIGID TUBE |
1 |
| 4 |
YN30H01006P1 |
RIGID TUBE |
1 |
| 5 |
ZD11G07500 |
0-RING ID 74.40±0.65x0D 80mm |
1 |
| 6 |
ZD12P02600 |
O-RING ID 25.70±0.26x0D 32mm |
4 |
| 7 |
YN30H01012P |
HOSE [385] |
1 |
| 8 |
ZC16X09100 |
CLIP Clamp,Hose -Min 80xMax 101mm |
4 |
| 9 |
ZE13X12000 |
CLAMP Half --[Incls.Capscrew &Lockwasher |
4 |
| 10 |
YN43H01097P |
CLAMP Single…58x30x38mm (028mm) |
2 |
| 11 |
LQ30H01006P |
SUPPORT |
1 |
| 12 |
ZW16H10000 |
WASHER ID 11x0D 24xTh3.2mm |
4 |
| 13 |
ZS28C12030 |
CAP Screw-M12x1.75x30mm |
4 |
| 14 |
ZS28C10080 |
SCREWM10x1.50x80mm |
8 |
| 15 |
ZS18C10065 |
SCREW M10x1.50x65mm |
2 |
| 16 |
ZS18C12025 |
SCREWM12x1.75x25mm |
2 |
| 17 |
ZN18C10008 |
NUT M10x1.50mm |
2 |
| 18 |
ZW16H12000 |
WASHER ID 13xOD 26xTh 3.2mm |
2 |
| 19 |
ZW26K12000 |
LOCK WASHER ID 12xOD 17.8xTh 2.5mm |
4 |
| 20 |
ZW26K10000 |
WASHER Lock-ID 10x0D 15.7x Th 2.5mm |
8 |
| 21 |
YN30H01008D1 |
HOSE (850 |
1 |
| 22 |
YN30H01008D2 |
FLEXIBLE HOSE (900 |
1 |
| 23 |
YN52S00004P1 |
PRESSURE SWITCH PRESS |
2 |
|
LS52S00015P |
PRESSURE SWITCH PRESS |
2 |
| 23-0 |
Y52S00033F2 |
SENSOR Kit Includes Ref 23-23-4 (Refer to SB S030-41-K003) |
1 |
| 23-1 |
YN13E01610P1 |
HARNESS [Added with new part #press switch] |
1 |
| 23-2 |
ZD11P01400 |
0-RING ID 13.8±0.19x0D 18.6mm |
1 |
| 23-3 |
LS30H01024P |
HYD CONNECTOR [Added with new part #press switch] |
1 |
| 23-4 |
YT42H01128P1 |
ELBOW [Added with new part #press switch] |
1 |
| 24 |
YN03H01169P |
GROMMET |
1 |
| 25 |
2432Z290D6 |
CLIP Wire Ties-292mm Long |
1 |
Installation decomposition diagram
